Transformers are essential components in electrical power systems, responsible for voltage regulation and ensuring efficient energy transmission. Yet, one common phenomenon associated with transformers is the audible humming noise they produce during operation. Understanding the causes of this noise is crucial for transformer design, maintenance, and improving overall system performance. This article delves into the reasons behind transformer hum, explores the physics involved, and discusses how modern  dry type transformers address these issues.

The humming sound emitted by transformers is primarily due to a phenomenon known as magnetostriction. This is a property of ferromagnetic materials, such as the iron core used in transformers, where they change shape or dimensions when subjected to a magnetic field. As alternating current passes through the transformer coils, it creates a fluctuating magnetic field, causing the core to expand and contract at a frequency of 50 or 60 Hz, depending on the power system. This mechanical deformation generates vibrations that produce the characteristic hum.

Magnetostriction-induced vibrations are intrinsic to transformer operation. The degree of magnetostriction depends on the material properties of the core. Grain-oriented silicon steel, commonly used in transformer cores, exhibits magnetostriction when exposed to magnetic fields. The alternating nature of the magnetic field in the transformer leads to a cyclical expansion and contraction of the core laminations, resulting in core vibration and noise.

Another contributor to transformer hum is the Lorentz force acting on the windings. When current flows through the transformer coils, it interacts with the magnetic field, producing forces that can cause the windings to vibrate. These vibrations can be transmitted to the transformer tank or enclosure, amplifying the noise. The design and fastening of windings play a critical role in minimizing these vibrations.

Several factors influence the level and characteristics of the noise produced by transformers. Understanding these factors is essential for engineers and  dry type transformer manufacturers aiming to design quieter transformers.

The choice of core material significantly affects magnetostriction levels. High-quality silicon steel with low magnetostriction properties can reduce core vibrations. Additionally, the core design, including lamination thickness and assembly techniques, can influence the noise. Thinner laminations and careful stacking reduce gaps and inconsistencies that contribute to vibration.

The method of winding construction impacts the mechanical stability of the coils. Uniform winding tension and secure clamping minimize movement due to Lorentz forces. Insulation materials and techniques that dampen vibrations can further reduce noise levels.

Transformer noise varies with load conditions. Under no-load conditions, the noise is primarily due to core magnetostriction. As the load increases, winding vibrations contribute more significantly to the overall noise. Nonlinear loads that cause harmonic currents can exacerbate vibrations and noise due to additional electromagnetic forces at harmonic frequencies.

Environmental factors such as temperature and surrounding structures influence noise propagation. Cooler temperatures can slightly reduce noise by affecting material properties. Installations in confined spaces or near reflective surfaces may experience amplified noise due to sound wave reflections.

Reducing transformer hum involves a combination of design improvements, material selection, and installation practices. Engineers adopt various strategies to minimize noise for both new transformers and existing installations.

Using core materials with lower magnetostriction coefficients, such as amorphous metal alloys, can significantly reduce core vibrations. Though more expensive, these materials offer superior performance in applications where noise reduction is critical.

Optimizing the core design by ensuring tight clamping of laminations and eliminating gaps reduces magnetostriction effects. Precision in manufacturing tolerances and assembly processes contributes to a quieter transformer.

Incorporating damping materials between the core and the enclosure can absorb vibrations. Elastomeric pads or specialized coatings can be used to isolate the core vibrations from the tank, preventing sound transmission.

Proper installation is vital for minimizing noise. Placing transformers on vibration-absorbing mounts or pads can isolate mechanical vibrations. Additionally, situating transformers away from noise-sensitive areas and avoiding installation near hard, reflective surfaces can help reduce perceived noise levels.

Dry type transformers have gained popularity due to their safety, environmental friendliness, and lower maintenance requirements compared to oil-immersed transformers. Innovations in dry type transformer technology have also contributed to noise reduction.

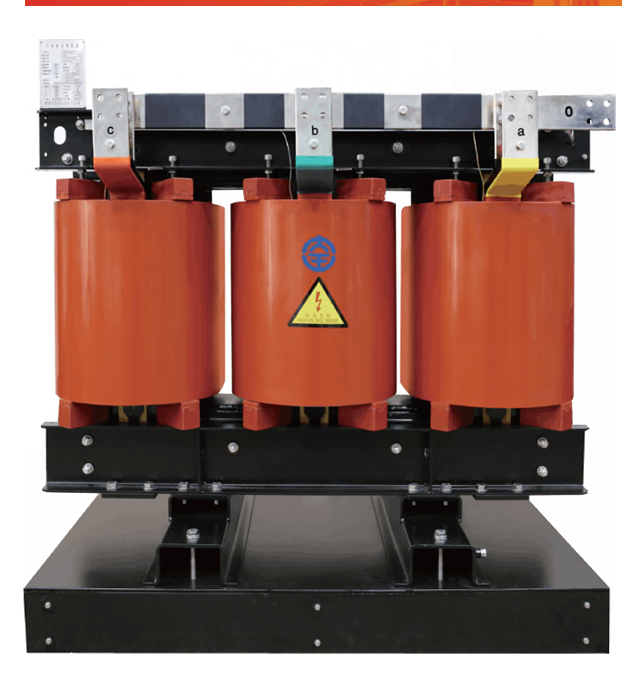

In dry type transformers, windings are often encapsulated in epoxy resin. This encapsulation provides excellent insulation and mechanical support, reducing winding vibrations. The rigid resin structure dampens vibrations caused by electromagnetic forces within the windings.

Advancements in core materials, such as the use of nano-crystalline alloys, have led to reduced core losses and lower magnetostriction. Improved core stacking techniques and precision cutting of laminations minimize gaps and misalignments that contribute to noise.

Efficient cooling in dry type transformers not only improves performance but also reduces thermal noise. Designs incorporating natural air cooling (AN) or forced air cooling (AF) with optimized airflow paths minimize acoustic noise from cooling fans and enhance heat dissipation.

Transformer noise is subject to regulatory standards to ensure environmental compliance and community well-being. Organizations such as the International Electrotechnical Commission (IEC) and the National Electrical Manufacturers Association (NEMA) provide guidelines on acceptable noise levels for transformers.

Manufacturers must design transformers that meet specified noise level limits, which vary depending on the transformer's size, type, and application. Compliance testing involves measuring sound pressure levels under defined conditions to certify that the transformer adheres to the required standards.

Regulatory constraints drive innovation in transformer design. Manufacturers invest in research and development to create products that not only meet performance requirements but also minimize environmental noise impact. This includes the adoption of advanced materials and precision manufacturing techniques.

Real-world examples illustrate how understanding and mitigating transformer noise benefits various stakeholders, from utilities to urban developers.

In densely populated areas, transformer noise can be a significant concern for residents. A case study involving the installation of a dry type transformer in a residential building showed that by utilizing advanced core materials and sound-dampening enclosures, noise levels were reduced to below ambient city noise, mitigating complaints and enhancing inhabitant satisfaction.

In industrial facilities where multiple transformers operate simultaneously, cumulative noise can affect worker comfort and health. Implementing transformers with noise-reduction features and proper installation techniques led to a significant decrease in noise exposure, contributing to a safer work environment and compliance with occupational health regulations.

Ongoing research aims to further understand and mitigate transformer noise. Emerging technologies and materials hold promise for quieter transformers in the future.

Development of new magnetic materials with ultra-low magnetostriction properties can significantly reduce core vibrations. Research into nanocrystalline and amorphous alloys continues to advance, offering potential for widespread adoption in transformer cores.

Integration of sensors and monitoring systems allows for real-time analysis of transformer vibrations and noise. Predictive maintenance enabled by AI algorithms can detect abnormal vibration patterns, preventing failures and enabling proactive noise management.

Advancements in computational modeling provide deeper insights into the vibro-acoustic behavior of transformers. Finite element analysis (FEA) and multi-physics simulations help engineers optimize designs before manufacturing, reducing the need for costly prototypes and iterations.

Transformer hum is a complex phenomenon rooted in the fundamental physics of magnetism and electromagnetism. Understanding the causes of transformer noise enables engineers and manufacturers to develop solutions that mitigate its effects. Through material innovation, design optimization, and advanced manufacturing techniques, modern transformers, especially dry type transformers, have become quieter and more efficient. As technology progresses, further reductions in transformer noise will enhance the performance of electrical systems and contribute to a more harmonious interaction between energy infrastructure and the environments in which they operate.
