Dry type transformers are essential components in modern electrical power systems, providing safe and efficient voltage regulation without the use of liquid insulation. Unlike oil-immersed transformers, these transformers use air or other gaseous mediums for insulation and cooling, making them ideal for indoor installations and environments with strict fire safety requirements. Understanding the various parts of a dry type transformer is crucial for engineers, technicians, and professionals involved in electrical infrastructure. This article delves into the intricate components that constitute a dry type transformer, shedding light on their functions and significance in overall transformer performance.

As the demand for reliable and safe power distribution grows, so does the importance of selecting the right  dry type transformer for specific applications. By exploring the components in detail, professionals can make informed decisions when designing, operating, or maintaining these transformers.

A dry type transformer is composed of several key components that work in harmony to transform voltage levels efficiently and safely. Each part plays a critical role in the transformer's operation, affecting factors like efficiency, thermal performance, and mechanical stability. The main components include the magnetic core, windings, insulation system, enclosure, and cooling system. Understanding these parts is essential for optimizing transformer performance and ensuring long-term reliability.

The magnetic core is the heart of the transformer, providing a low reluctance path for the magnetic flux generated during operation. It is typically constructed from high-quality silicon steel laminations, which are stacked and insulated from each other to minimize eddy current losses. The core's design directly influences the transformer's efficiency, losses, and weight. Core configurations can vary, with common types including toroidal, laminated, and amorphous cores.

Advancements in core materials, such as the use of amorphous metals, have led to transformers with significantly reduced core losses. These materials have a non-crystalline structure, which allows for lower hysteresis losses compared to traditional silicon steel cores. The selection of core material and design is a critical consideration in transformer manufacturing, impacting both performance and cost.

Windings are the coils of conductors wound around the core and are responsible for transferring electrical energy through electromagnetic induction. There are primarily two types of windings in a transformer: the primary winding, which receives the input voltage, and the secondary winding, which delivers the transformed voltage. The windings are made of copper or aluminum conductors, chosen for their excellent electrical conductivity and mechanical strength.

The design and arrangement of windings affect the transformer's impedance, voltage regulation, and thermal performance. Techniques such as interleaving and transposition are employed to reduce losses and improve efficiency. Additionally, the windings must be mechanically secured to withstand forces during short circuits and other transient conditions.

The insulation system in a dry type transformer serves to electrically isolate the windings from each other and from the core, preventing dielectric breakdown and ensuring safe operation. Since dry type transformers do not use liquid insulation, solid insulation materials such as epoxy resins, fiberglass, and Nomex are utilized.

Different insulation classes, such as Class B, F, H, and R, indicate the maximum operating temperatures the materials can withstand. For instance, Class H insulation can handle temperatures up to 180°C. The choice of insulation material affects the transformer's thermal performance, longevity, and ability to operate under demanding conditions.

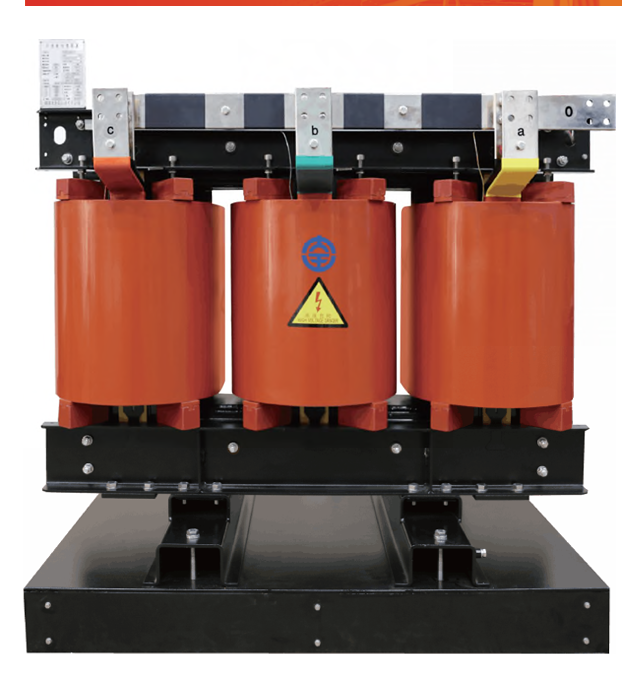

Advanced insulation techniques, like vacuum pressure impregnation (VPI) and cast resin encapsulation, enhance the dielectric properties and mechanical strength of the windings. VPI involves impregnating the windings with epoxy resin under vacuum and pressure, ensuring thorough penetration and reducing voids. Cast resin transformers encapsulate the windings in epoxy resin, providing excellent moisture resistance and mechanical stability.

The enclosure of a dry type transformer provides mechanical protection, safety, and environmental shielding for the internal components. Enclosures are designed according to specific application requirements, considering factors such as ventilation, ingress protection, and accessibility.

Enclosure ratings, defined by standards like NEMA and IP codes, indicate the level of protection against dust, moisture, and other external elements. For indoor installations, enclosures may focus on safety and accessibility, while outdoor applications require robust designs to withstand weather conditions. The enclosure also plays a role in noise reduction, with acoustic insulation materials used to minimize sound levels generated during operation.

Cooling is vital for maintaining the transformer's temperature within safe operating limits, preventing insulation degradation, and prolonging service life. Dry type transformers rely on natural air circulation (AN) or forced air cooling (AF) systems. Natural air cooling utilizes convection currents to dissipate heat, suitable for transformers operating under normal load conditions.

For higher capacity transformers or those operating under heavy loads, forced air cooling using fans enhances heat dissipation. Cooling fans are strategically placed to direct airflow over the core and windings, increasing the transformer's rating and efficiency. Temperature monitoring and control systems are often integrated to activate cooling mechanisms as needed, optimizing performance and energy consumption.

Beyond the core structural components, dry type transformers may incorporate specialized accessories to enhance functionality, safety, and monitoring capabilities. These components can include temperature sensors, protective relays, surge arresters, and monitoring devices.

Temperature is a critical parameter affecting transformer performance and lifespan. Devices such as thermocouples, Resistance Temperature Detectors (RTDs), and fiber optic sensors are used to monitor the temperature of the windings and core. These sensors provide real-time data, allowing for proactive maintenance and preventing thermal overload conditions.

Advanced monitoring systems can integrate with control units to adjust cooling mechanisms automatically. These systems enhance reliability, reduce the risk of failures, and can extend the transformer's operational life by ensuring it operates within safe thermal limits.

Protective devices are essential for safeguarding transformers against electrical faults, overcurrents, and voltage surges. Protective relays detect abnormal operating conditions and initiate corrective actions such as disconnecting the transformer from the network. Surge arresters protect the transformer from transient overvoltages caused by lightning strikes or switching actions.

Implementing these protective measures is vital for ensuring the safety of the transformer, associated equipment, and personnel. The proper selection and coordination of protective devices contribute to the overall reliability of the electrical distribution system.

Manufacturing dry type transformers involves precision engineering and adherence to stringent quality standards. Reputable  dry type transformer manufacturers focus on materials selection, design optimization, and rigorous testing to ensure product reliability and performance.

Standards set by organizations like the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE) provide guidelines for transformer design, testing, and performance criteria. Compliance with these standards ensures that transformers meet safety regulations and can operate effectively within the specified applications.

Innovations in manufacturing techniques, such as automated winding machines and computer-aided design (CAD), enhance the precision and efficiency of transformer production. Manufacturers also invest in research and development to improve transformer materials, designs, and technologies, leading to better performance and reduced environmental impact.

Dry type transformers are widely used across various industries due to their safety, low maintenance, and environmental friendliness. Common applications include commercial buildings, industrial facilities, hospitals, renewable energy systems, and marine environments.

In environments where fire safety is paramount, such as high-rise buildings and underground installations, dry type transformers are preferred over oil-immersed types. Their capacity to operate without flammable liquids reduces fire risks and eliminates the need for special containment systems.

Moreover, dry type transformers are used in renewable energy applications like wind turbines and solar farms. Their robust design and ability to withstand harsh environmental conditions make them suitable for these installations. The growing emphasis on sustainable energy solutions continues to drive the demand for dry type transformers in these sectors.

While dry type transformers require less maintenance than their oil-immersed counterparts, regular inspections and preventive maintenance are essential to ensure optimal performance. Key maintenance activities include visual inspections, cleaning, checking connections, and monitoring temperature readings.

Safety protocols must be followed when performing maintenance, including de-energizing the transformer and adhering to lockout/tagout procedures. Technicians should be trained in electrical safety practices and familiar with the specific transformer models they service.

Upgrading or retrofitting transformers with the latest monitoring and protective devices can enhance safety and performance. Implementing advanced diagnostics and condition monitoring helps in early detection of potential issues, reducing downtime and maintenance costs.

Dry type transformers offer environmental advantages by eliminating the risk of oil leaks that can contaminate soil and water. They also reduce fire hazards associated with flammable insulating liquids. With increasing global emphasis on sustainability, these transformers contribute to greener electrical infrastructure.

Energy efficiency is another aspect where dry type transformers can have a positive environmental impact. By utilizing advanced core materials and designs that minimize losses, they reduce energy waste and operating costs. This efficiency aligns with initiatives aimed at reducing greenhouse gas emissions and promoting energy conservation.

Manufacturers are also focusing on sustainable practices, from sourcing eco-friendly materials to implementing energy-efficient production processes. End-of-life disposal and recycling of transformer components are considerations that further enhance the environmental benefits of dry type transformers.

Continuous research and development in transformer technology lead to improvements in performance, reliability, and cost-effectiveness. Innovations include the use of superconducting materials, which offer near-zero resistance and dramatically reduce losses. While still in experimental stages, such technologies hold promise for future transformer designs.

Integration of smart monitoring systems and IoT (Internet of Things) connectivity enables real-time data analysis, predictive maintenance, and remote management. These capabilities enhance operational efficiency and allow for better asset management across electrical networks.

Materials science advancements contribute to the development of new insulation systems and core materials with superior properties. These advancements result in transformers that can operate at higher temperatures, handle greater loads, and have longer service lives.

Understanding the different parts of a dry type transformer is essential for anyone involved in the design, operation, or maintenance of electrical power systems. Each component, from the magnetic core to the cooling system, plays a vital role in the transformer's performance and reliability. Advances in technology continue to improve these transformers, making them more efficient, safer, and environmentally friendly.

Selecting the right transformer requires careful consideration of application requirements, environmental conditions, and regulatory standards. Partnering with a reputable dry type transformer manufacturer ensures access to high-quality products and expert support.

As the world moves towards more sustainable and intelligent power systems, dry type transformers will continue to play a crucial role. Their inherent safety, efficiency, and adaptability make them suitable for a wide range of applications, from urban infrastructure to renewable energy projects. By staying informed about the components and advancements in transformer technology, professionals can contribute to the development of robust and reliable electrical networks.
